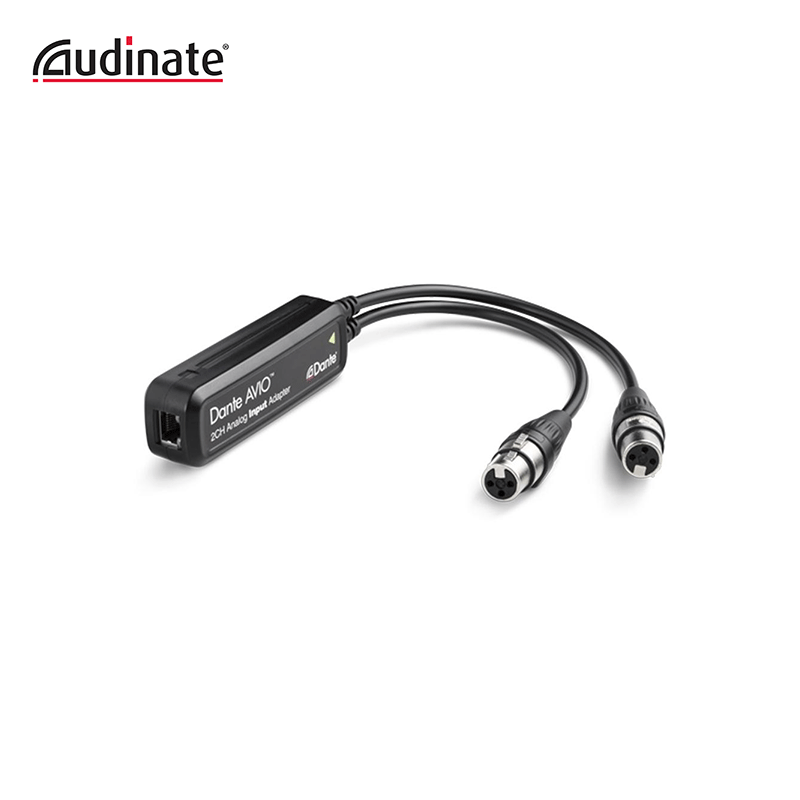

Audinate ADP-DAI-AU-2X0 Dante AVIO 2-Channel Analog Input Adapter

Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system.

Features

• Plug & play operation
• Built for the road
• Sample rates up to 96 kHz
• 16, 24 and 32-bit audio support
• Excellent dynamic range, SNR and THD performance
• Configurable gain / attenuation
• Dante Audio over IP and AES67 RTP transport formats
• Power over Ethernet (PoE) support
• Dante Domain Manager ready

Specs

• Max signal level (balanced): +24dBu / +4dBu / 0dBu
• Frequency Response: 20Hz to 20kHz (-/+ 0.5dB)
• Impedance: 20k Ohm balanced / 10k Ohm unbalanced
• Dynamic Range: >100db
• Signal to Noise Ratio: >100db
• Total Harmonic Distortion: <0.01% @ 4dBu
• Connectors: RJ45 / 2x XLR-F
• Power: Class 1 802.3af PoE
• Sample Rates: 44.1 / 48 / 96kHz
• Bit Depth: 24
• Dante Device Latency: 1 / 2 / 5ms (Configurable)
