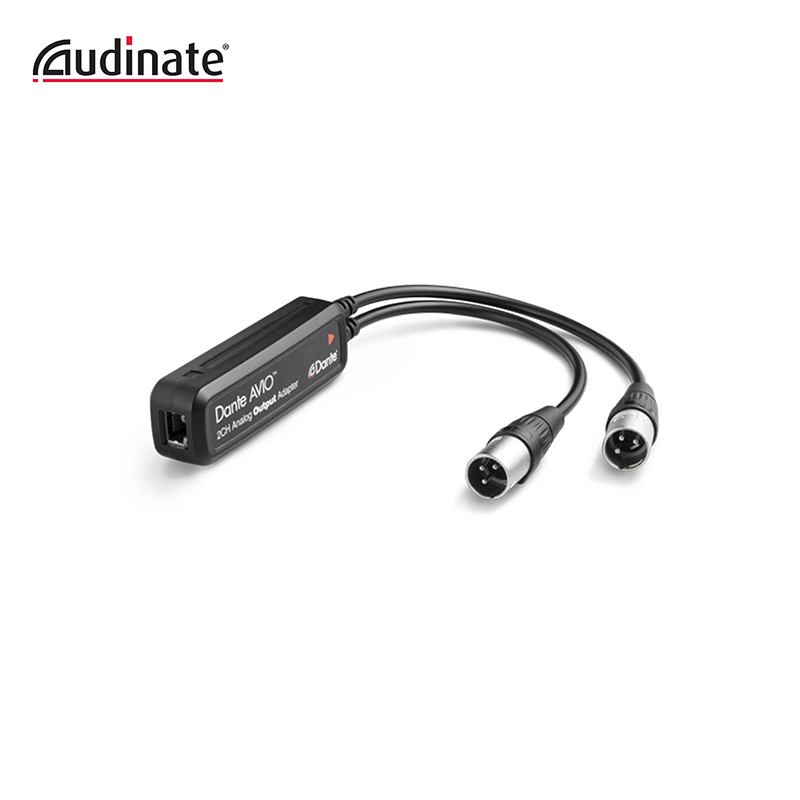

Dante AVIO Analog Outputs let you drive analog line-level products you already own from any Dante-connected system.
Features
- Plug & play operation
- Built for the road
- Sample rates up to 96 kHz
- 16, 24 and 32-bit audio support
- Excellent dynamic range, SNR and THD performance
- Configurable gain / attenuation
- Dante Audio over IP and AES67 RTP transport formats
- Power over Ethernet (PoE) support
- Dante Domain Manager ready
Specs
- Max signal level (balanced): +18dBu / +4dBu / 0dBu
- Frequency Response: 20Hz to 20kHz (-/+ 0.5dB)
- Impedance: 150 Ohm balanced / 75 Ohm unbalanced
- Dynamic Range: >100db
- Signal to Noise Ratio: >100db
- Total Harmonic Distortion: <0.01% @ 4dBu
- Connectors: RJ45 / 2x XLR-M
- Power: Class 1 802.3af PoE
- Sample Rates: 44.1 / 48 / 96kHz
- Bit Depth: 24
- Dante Device Latency: 1 / 2 / 5ms (Configurable)
