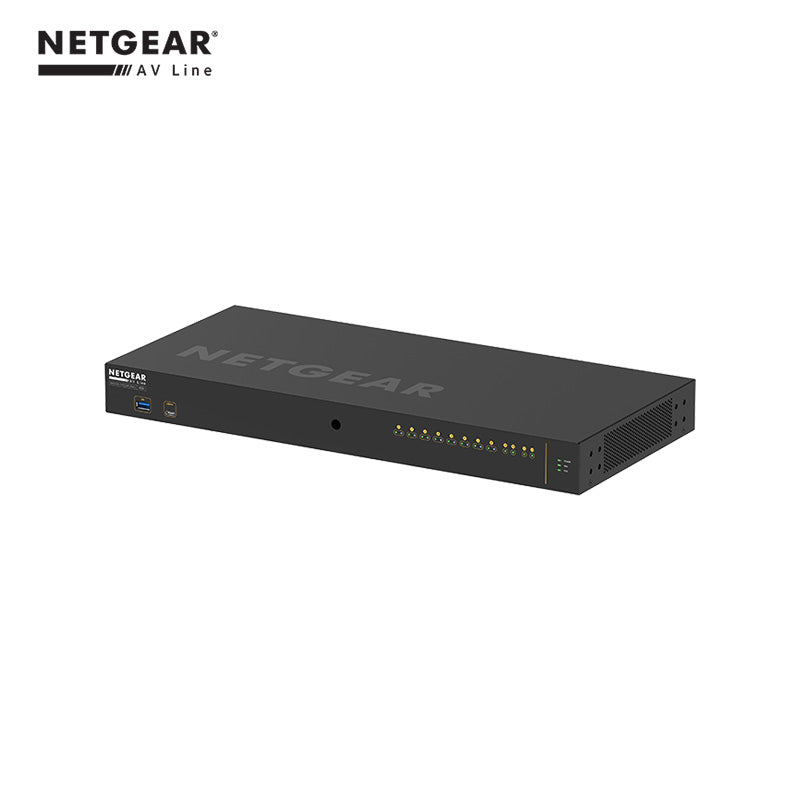

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality.
Features
- Multi-switch Audio or Single-switch Video Deployments
- Layer 2/3 Switching
- Pre-configured for out-of-the-box use
- Dedicated AV Web-based GUI
- Video Profiles Built-in
- Profiles for Common Audio Protocols
- Unique Automatic Configuration
- Rack Mountable
Technical Specs
- Primary Port Speed: 1 Gigabit
- Number of Ports: 12 (10x 1G, 2x SFP)
- PoE Ports / Budget: 8 PoE+ (30W/port), 240W Budget
- IGMP Support: Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support: Yes, up to 12kb
- Acoustics: Fanless or 39.22dB@25ºC
- Power Consumption: With PoE: 306.4W/1046.050Btu/hr; Without PoE: 25W/85.35Btu/hr; Standby without any port connection: 12.96W/44.245Btu/hr
- AVB Support: Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S)
